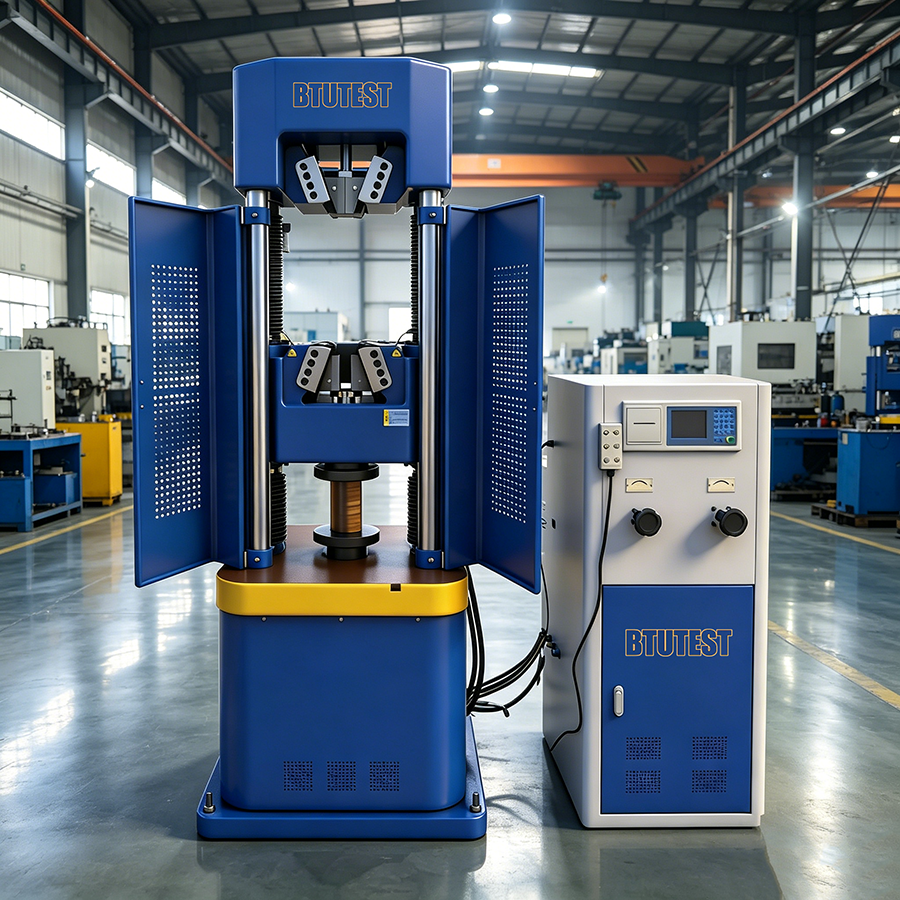

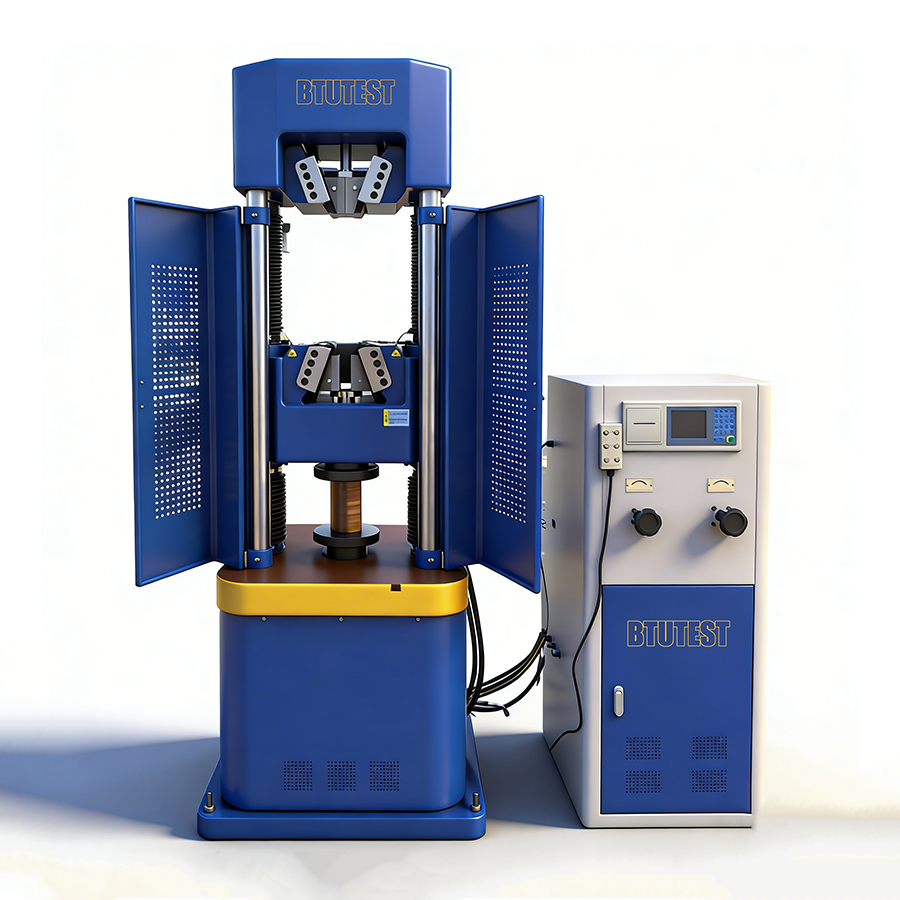

Hydraulic Universal Testing Machine WE Series Six-Column Dual Space ISO ASTM CE WE-100/300/600/1000KN

Product Description

Hydraulic Universal Testing Machine WE Series Six-Column Dual Space ISO ASTM CE WE-100/300/600/1000KN





Product Highlights

· ✅ High‑Stiffness Six‑Column Structure
More stable than four‑column designs. Excellent alignment for reliable test results.

· ✅ Dual‑Space Design – No Fixture Change
Separate tensile space (upper) and compression/bending/shear space (lower). Test efficiency greatly improved.

· ✅ High Accuracy
Accuracy better than Class 1 (Class 0.5 optional). Meets EN ISO/ASTM standards.

· ✅ Long Piston Stroke (200 mm)
Accommodates various specimen lengths. Easy adjustment via sprocket & lead screw.

· ✅ Spherical Compression Plate
Automatic alignment prevents lateral forces – ensures accurate compression test results.

· ✅ Wide Gripping Range
Round: Φ6–40 mm, Flat: 0–40 mm thickness. Covers most common specimen sizes.

· ✅ Advanced Measurement & Control
Supports cyclic, creep, relaxation, holding tests. Automatic analysis of yield point, break point, modulus.

· ✅ SGS & CE Certified
Quality assured by internationally recognized third‑party certification.



Advantages

Feature	Product Advantage	Customer Benefit
Six‑column high‑stiffness frame	Better axial & lateral stiffness than four‑column designs	More reliable test results, less deflection under load
Dual‑space design (tension upper / compression lower)	No need to change fixtures between different test types	Saves time, increases daily test throughput
Long piston stroke (200 mm)	Accommodates long specimens and large deformation	One machine handles more specimen sizes – no extra equipment needed
Accuracy Class 1 (Class 0.5 optional)	Meets international standards (ISO, ASTM, EN)	Data accepted globally, pass audits with confidence
Spherical lower compression plate	Automatic alignment ensures force centering	Accurate compression test results – no lateral force errors
Wide gripping range (Φ6–40 mm round, 0–40 mm flat)	Covers rebar, plate, structural steel, bolts	No need to change jaws frequently – versatile
Intelligent measurement & control instrument	Supports cyclic, creep, relaxation, holding tests	Advanced testing capability for R&D and certification
Optional hydraulic jaws	Stronger clamping force, no specimen slippage	Operator‑friendly, consistent clamping, reduces fatigue
Overload protection limit sensor	Automatic stop at set limits	Protects machine and operator, reduces downtime
SGS &CE certified	Third‑party quality verification	Builds trust with international buyers, easier market entry





Standards

Standard	Material / Application	Why It Matters
EN ISO 6892‑1	Tensile testing of metals	Mandatory for Europe, Middle East, Asia
EN ISO 15630‑1	Test methods for steel for concrete reinforcement	Essential for rebar suppliers to EU projects
EN ISO 7500‑1	Calibration of testing machines (force)	Proves force traceability
EN 10002	Tensile testing (historical standard)	Compatibility with older specifications
ASTM A370	Mechanical testing of steel products	Required for North American buyers
UNI 7676	Italian metal tensile standard	Key for Italian market

“We can pre‑install test templates for ISO, ASTM, EN, and other standards. Easy calibration procedure.”



Specification

Parameter	WE-100B	WE-300B	WE-600B	WE-1000B
Max Force (kN)	100	300	600	1000
Accuracy Class	Class 1 (Class 0.5 opt.)	same	same	same
Max Compression Space (mm)	500	600	600	600
Max Tensile Space (mm)	600	700	700	700
Piston Stroke (mm)	200	200	200	200
Round Specimen Range (mm)	Φ6–22	Φ10–32	Φ13–40	Φ13–40
Flat Specimen Thick (mm)	0–15	0–20	0–20	0–40
Compression Plate Diameter (mm)	Φ110	Φ150	Φ200	Φ225
Main Frame Dimensions (mm)	500×700×1740	760×565×1960	760×565×2110	870×635×2260
Control Cabinet (mm / kg)	600×540×1370 / 300kg	same	same	same
Main Frame Weight (kg)	1400	1500	1800	2500

Quick selection guide:

· WE-100B– small rebar, thin plate (≤100 kN)

· WE-300B– medium steel (100–300 kN)

· WE-600B– large rebar, structural steel (300–600 kN)

· WE-1000B– thick plate, heavy components (600–1000 kN)



Customization Options

· ✅Accuracy upgrade– Class 0.5 available for higher precision needs

· ✅Hydraulic jaws– optional for stronger, hands‑free clamping

· ✅Test space extension– higher tensile or compression space (on request)

· ✅Software customization– report templates, test methods, language

· ✅OEM / branding– frame color, logo plate

· ✅Voltage & frequency– 220V/380V, 50Hz/60Hz adaptable

· ✅Extra accessories– bending fixtures, shear fixtures, extensometer, protective cover



Accessories & Service Support

Standard accessories (included):

· Main frame (six‑column, dual‑space)

· Oil source (hydraulic power unit)

· Intelligent measurement & control instrument

· Standard V‑shaped & flat jaws (manual or wedge type)

· Upper & lower compression plates (lower with spherical alignment)

· Remote control box

Optional accessories:

· Hydraulic jaws (for easier, stronger clamping)

· Extensometer (for deformation/strain measurement)

· Bending / shear test fixtures

· Protective cover

Service & support:

· ��️12 months warranty(extendable to 24 months)

· ��️Lifetime technical support(email/WhatsApp/remote)

· ��️Easy calibration procedure(user can perform)

· ��️Spare parts supply for 10+ years

“We are the direct manufacturer. Factory price, direct support, faster spare parts delivery.”



Typical Usage Scenarios

Scenario	Point	Recommended Model	Key Advantage
Construction material lab	Test rebar, steel plate, structural steel – need fast switching between tension & compression	WE-600B / 1000B	Dual‑space design, no fixture change
Third‑party testing lab	High volume, need reliability and accuracy	WE-600B / 1000B	Six‑column stability, Class 1 accuracy
University teaching lab	Demonstrate tensile & compression to students	WE-100B / 300B	Clear dual‑space view, easy operation
Factory incoming inspection	Check bolts, small bars, plates	WE-100B / 300B	Compact footprint, wide gripping range
Bridge / infrastructure project	On‑site or nearby lab for quality control	WE-600B / 1000B	Spherical plate for accurate compression, long stroke
Mechanical component manufacturer	Test shear, bending of materials	WE-300B / 600B	Optional fixtures for bending & shear



Real Customer Cases

Case 1 – Construction Lab in Nigeria
Machine: WE-600B
“We test rebar for a highway project. The six‑column frame gives very stable results – matches third‑party lab perfectly. Dual‑space saves us at least 2 hours daily.”
– Quality Manager

Case 2 – University in Indonesia
Machine: WE-300B
“Our students learn tension and compression on the same machine without changing fixtures. The spherical compression plate is great for concrete cube tests.”
– Lab Instructor

Case 3 – Steel Fabricator in Mexico
Machine: WE-1000B
“We needed a machine for thick plate (up to 40mm). The flat jaw range is perfect. Hydraulic jaws option made operation much easier for our team.”
– Plant Engineer

Case 4 – Third‑Party Lab in Kenya
Machine: WE-600B
“The machine is robust – we run over 200 samples a week. Calibration is simple. SGS certification helped us win government contracts.”
– Lab Director

Case 5 – Precast Concrete Plant in Vietnam
Machine: WE-300B
“We test both rebar tensile and concrete compression. One machine, two tests. Very cost‑effective.”
– Production Supervisor



Ready to upgrade your materials testing?

✅Factory direct price– no middleman markup.
✅12 months warranty + lifetime technical support– we stand behind our machine.
✅Quick delivery– 25–35 days for standard models.
✅Free sample testing– available upon request.
✅SGS & CE certified– quality you can trust.

��Click “Contact Supplier” nowand tell us:
• What materials/specimens you test (rebar, plate, bolt, etc.)
• Maximum force required (kN)
• Any special standard (ASTM, ISO, EN, etc.)

We will reply within 2 hours with a recommendation and quotation.
“Btutest – your reliable partner in material testing since 2010.”
