EN ASTM Digital Universal Testing Equipment Servo Hydraulic UTM Machine

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: WE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Universal Testing Equipment Standard export wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Hydraulic Universal Testing Machine With Digital Display Power: Hydraulic
Standard: EN,ISO,ASTM,UNI Warranty: 1 Year
Power Supply: 220v ,AC 3 Phase 380V Motor: Taiwan
Load Capacity: 300 600 1000 1500 2000kn Accuracy Dass: 1
Application: Universal Testing Equipment
High Light:

ASTM Digital Universal Testing Equipment

,

EN Hydraulic UTM Machine

Product Description

Hydraulic Universal Testing Machine Digital Universal Testing Equipment



Standards:

EN ISO 6892-1, EN ISO 15630-1, EN ISO 7500-1, EN 10002, ASTM A370, UNI 7676



Description:

  • The hydraulic power source is used to drive, and the intelligent measurement and control instrument is used to collect and process the test data. It is composed of four parts: the test host, the oil source (hydraulic power source), the measurement and control system, and the test apparatus. The accuracy grade of the test machine is better than grade 1.
  • It can meet the standard test requirements in the international regulations on metal tensile test, and can also realize the tensile, compression, bending, shear and other types of tests on different materials or products according to other standards. It can obtain the tensile strength, yield strength and other performance indicators of the tested materials.
  • The testing machine is a six column, double space structure. There is a tensile space between the upper beam and the lower beam, and a compressed space between the lower beam and the test bench. The test space is automatically adjusted by driving the lower beam up and down through the rotation of sprocket and lead screw. The standard model is equipped with V-shaped and plane jaws for clamping cylindrical samples and flat samples for tensile tests; The bottom end of the lower crossbeam of the standard model is equipped with an upper pressing plate, and the test bench is equipped with a lower pressing plate with a spherical structure, which can be directly used for compression test.

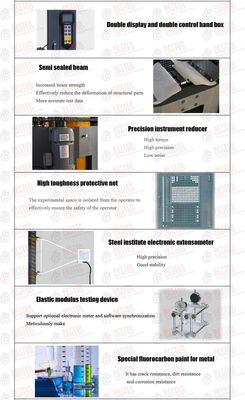

Features:

  • Six column providing superior axial and lateral stiffness and precision alignment
  • Two different work spaces, the upper one for tension and the lower one for compression, bending and shearing, for a comfortable test execution
  • High precision load cell, class 1 and class 0.5 calibration
  • Digital displacement transducer for the best positioning and measuring accuracy
  • User friendly remote for Multifunctional control
  • Hydraulic jaws, for stronger clamping of the specimens
  • Overload protection limit sensor
  • Long piston stroke for the most convenient and easy adjustment and testing of different sample lengths
  • Easy calibration procedure
  • Diverse and robust configurations for test end options, graph options, PID values, crosshead movement speeds etc
  • Different Testing Methods including cyclic, creep, relaxation, keeping etc
  • Determine and analyze data points such as yield point, breaking point, modulous etc
  • Universal Testing Equipment



Specification:

Model WE-100B WE-300B WE-600B WE-1000B
Maximum test force(kN) 100 300 600 1000
Accuracy dass Level 1 (level 0.5)
Maximum compression space 500 600
Maximum tensile space(mm) 600 700
Piston stroke (mm) 200
Diameter of round specimen(mm) Φ6-Φ22 Φ10-Φ32 Φ13-Φ40
Thicknessof flat specimen(mm) 0-15 0-20 0-40
Size of compression plates (mm) Φ110 Φ150 Φ200 Φ225
External dimension of main engine(mm) 500x700x1740 760x565x1960 760x565x2110 870x635x2260
Dimension/weight of con trol cabinet 600x540x1370mm/300kg
Weight of main engine 1400 1500 1800 2500
