Product Details:
|
|
| Place of Origin: | Made in China |
|---|---|
| Brand Name: | Btutest |
| Certification: | SGS, INTERTEK |
| Model Number: | BTU-DYE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Concrete Testing Equipment Standard export wooden box |
| Delivery Time: | 15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Name: | General Purpose Semi-Automatic Compression Testing Machines | Standard: | EN, BS, ASTM, AASHTO |
|---|---|---|---|
| Power Supply: | 220v ,AC 3 Phase 380V | Function: | Compression / Flexure Testing |
| Maximum Test Force: | 1000KN\2000KN3000KN | Compression Space(mm): | 280\360\380 |
| High Light: | 220VAC concrete compressive strength tester,Concrete Compressive Strength Tester 3000KN,220VAC compressive strength test equipment |
||
Product Description

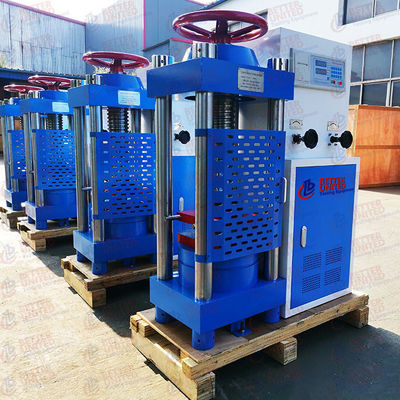

General Purpose Semi-Automatic Compression Testing Machines Concrete Testing Equipment
Standards:
EN, BS, ASTM, AASHTO
Description:
The hydraulic power source is used to drive, and the intelligent measurement and control instrument is used to collect and process the test data. It is composed of four parts: the test host, the oil source (hydraulic power source), the measurement and control system, and the test apparatus. The accuracy grade of the test machine is better than grade 1.
It can meet the international standard test requirements for bricks, concrete, cement and other materials, manual loading, digital display of loading force value and loading speed value.
The testing machine is a main engine oil source integrated structure; It is applicable to the compression test of cement and concrete. Equipped with appropriate fixtures and measuring devices, it can meet the splitting and tension test of concrete.
Test cubes up to 200 mm side and cylinders up to dia. 160 x 320. Concrete Testing Equipment
Features:
Specification:
| Model | DYE-1000 | DYE-2000 | DYE-3000 |
| Maximum test force | 1000KN | 2000KN | 3000KN |
| Accuracy dass | Level 1 | ||
| Compression space(mm) | 280 | 360 | 380 |
| Piston stroke(mm) | 30 | 50 | |
| size of upper plates(mm) | 210x255 | 240x240 | 255x320 |
| Size of lower platen(mm) | 210x255 | 240x240 | 255x320 |
| Extemal dimension(mm) | 850x400x1100 | 900x400x1580 | 960x490x1350 |
| Power(kw) | 0.75 | 1 | 1.1 |
| Weight(kg) | 600 | 700 | 800 |
About Us:
260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.
Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
