BS EN 2000 Kn Compression Testing Machine Flexural Testing Machine For Concrete

Product Description

General Purpose Semi-Automatic EN Compression Testing Machines For Masonary Units/Blocks Concrete Testing Equipment

Standards:

EN, BS, ASTM, AASHTO

Description:

The hydraulic power source is used to drive, and the intelligent measurement and control instrument is used to collect and process the test data. It is composed of four parts: the test host, the oil source (hydraulic power source), the measurement and control system, and the test apparatus. The accuracy grade of the test machine is better than grade 1.

It can meet the international standard test requirements for bricks, concrete, cement and other materials, manual loading, digital display of loading force value and loading speed value.

The testing machine is a main engine oil source integrated structure; It is applicable to the compression test of cement and concrete. Equipped with appropriate fixtures and measuring devices, it can meet the splitting and tension test of concrete.

Test cubes up to 200 mm side and cylinders up to dia. 160 x 320.  Concrete Testing Equipment

Features:

• Simple and convenient operation
• Stable and reliable, stable Afterburner, Pace Rate control between 1 kN to 25 kN
• Load Accuracy Class 1

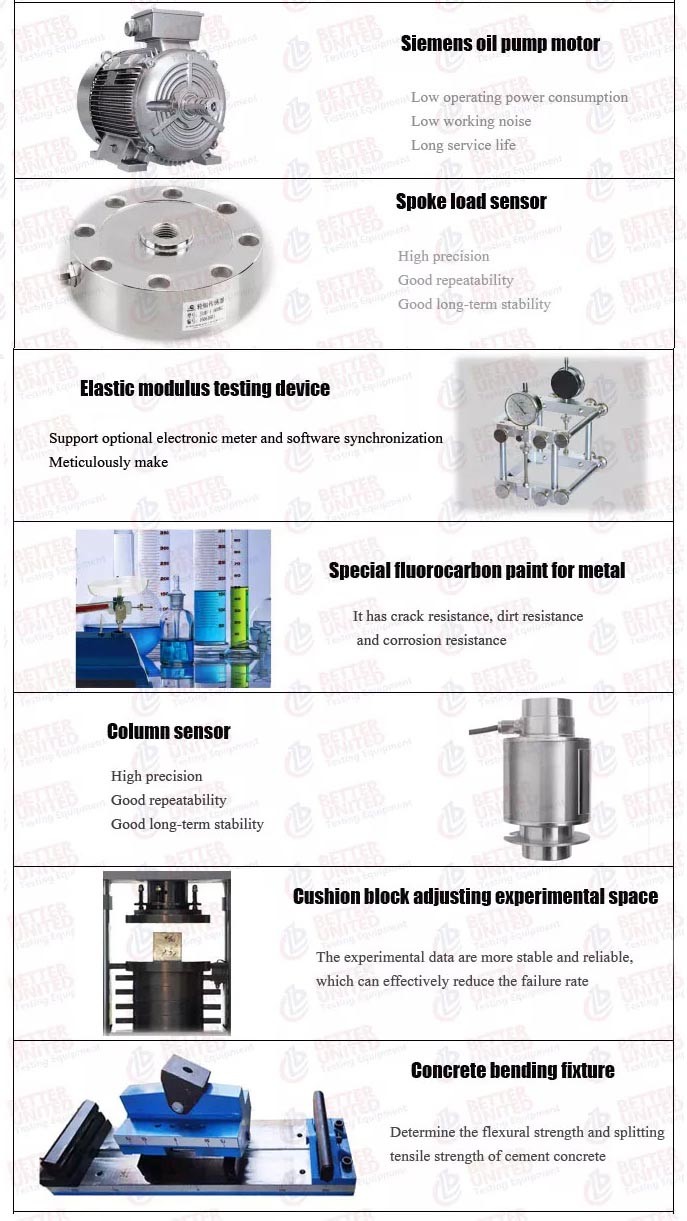

• Load measurment with a pressure transducer
• High precision spoke sensor
• Hydraulic pump stage for rapid approach
• Four Columns frame with a single acting piston
• Maximum pressure valves to avoid machine overloading
• Limit switch for piston stroke
• Emergency stop button
• Removable front and rear safety doors

Specification:
