General Purpose 2000kN 3000kN Automatic Compression Testing Machines For Blocks Cubes

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-HYE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Concrete Testing Equipment Standard export wooden
Delivery Time: 12 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Product Name: Automatic Compression Testing Machine Standard: EN, BS, ASTM, AASHTO
Power: Hydraulic Power Supply: 220v ,AC 3 Phase 380V
Application: Concrete, Cement Mortar Masonary Units/Blocks, Cylinders And Cubes Accuracy: 0.5
High Light:

3000kN Automatic Compression Testing Machine

,

2000kN Automatic Compression Testing Machine

Product Description

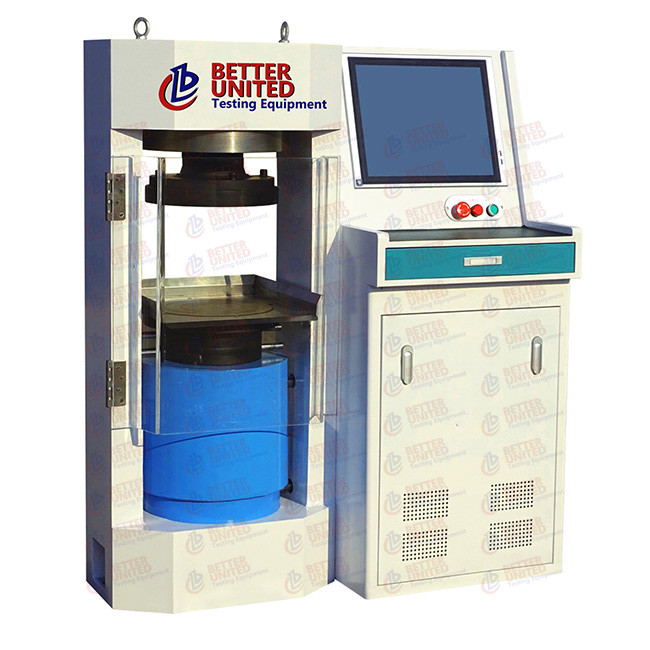

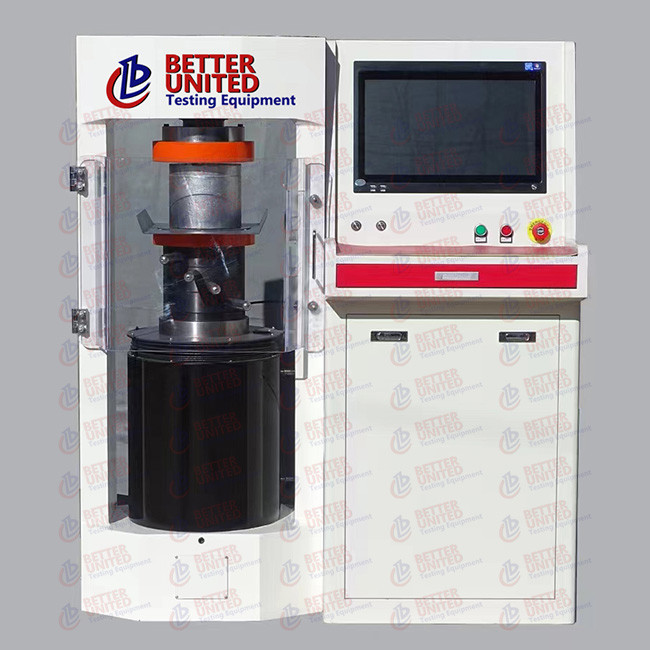

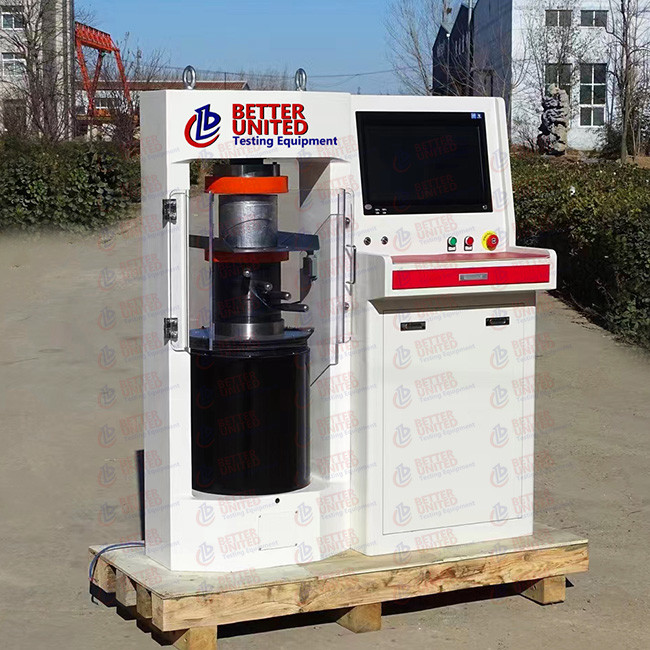

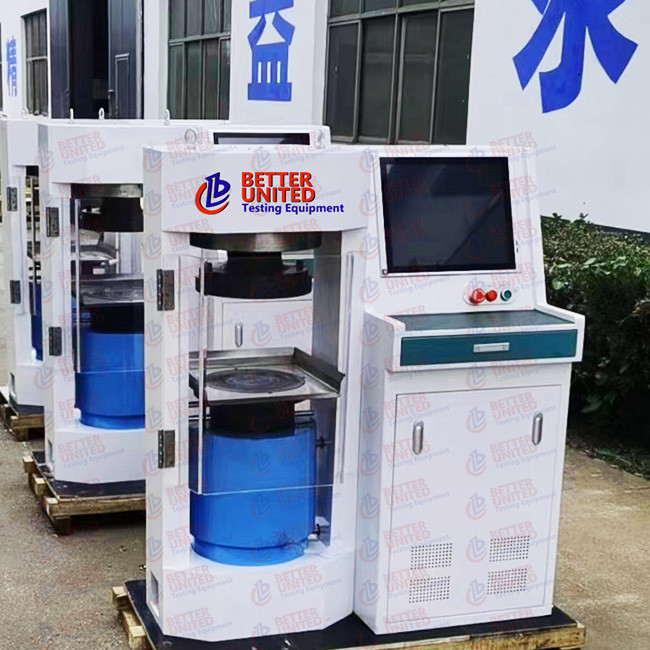

General Purpose Automatic Compression Testing Machines With Integrated Steel Frame Concrete Testing Equipment

Standards:
EN, BS, ASTM, AASHTO

 Description:
Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/ blocks, cylinders and cubes.perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the automatic compression / flexure testing machines.

Test cubes up to 50 mm 70.7mm 100 mm 200 mm side and cylinders up to dia. 150x300 mm dia. 100x200 mm
Concrete Testing Equipment

Features:

  • Simple and convenient operation
  • Stable and reliable, stable Afterburner, Pace Rate control between 1 kN to 25 kN
  • Load Accuracy Class 0.5
  • Tests automatically with closed loop control
  • The tests can be performed by controlling the machine either on control unit or on a computer with using Software
  • Load measurment with a pressure transducer
  • Mute servo motor
  • High precision spoke sensor
  • Hydraulic pump with dual stage for rapid approach
  • Welded steel walled frame with a single acting piston
  • Piston return at the end of test automatically
  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable transparent front and rear safety doors
  • Software controlled maximum load value



 Specification:

Model HYE-2000 HYE-3000
Maximum pressure 2000kN 3000kN
Host structure Integrated Steel Frame Integrated Steel Frame
Compressed space(mm) 360 400
Piston stroke(mm) 150 200
Upper pressing plate size(mm) Φ300 Φ300
Dimension of lower pressing plate(mm) Φ300 Φ300
Overall dimension(mm) 1070*500*1260 1400*720*1700
Overall power(KW) 1.7 1.9
Machine weight(kg) 1100 1800

General Purpose 2000kN 3000kN Automatic Compression Testing Machines For Blocks Cubes 0General Purpose 2000kN 3000kN Automatic Compression Testing Machines For Blocks Cubes 1



About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
