Concrete Creep Testing Machine Maximum 500KN / 1000KN

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-500/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Concrete Testing Equipment Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Concrete Creep Testing Machine Warranty: 1 Year
Relative Reading Error: ±1% Power Supply: 380V,50Hz/220V,50Hz
Maximum Testing Force: 500KN/1000KN Application: Concrete Testing Equipment

Product Description

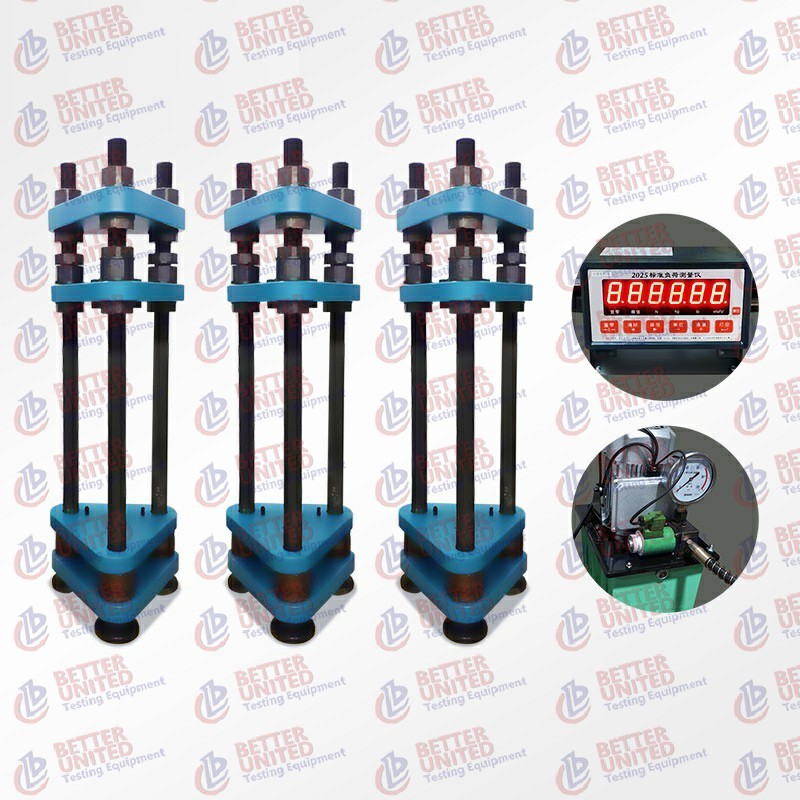

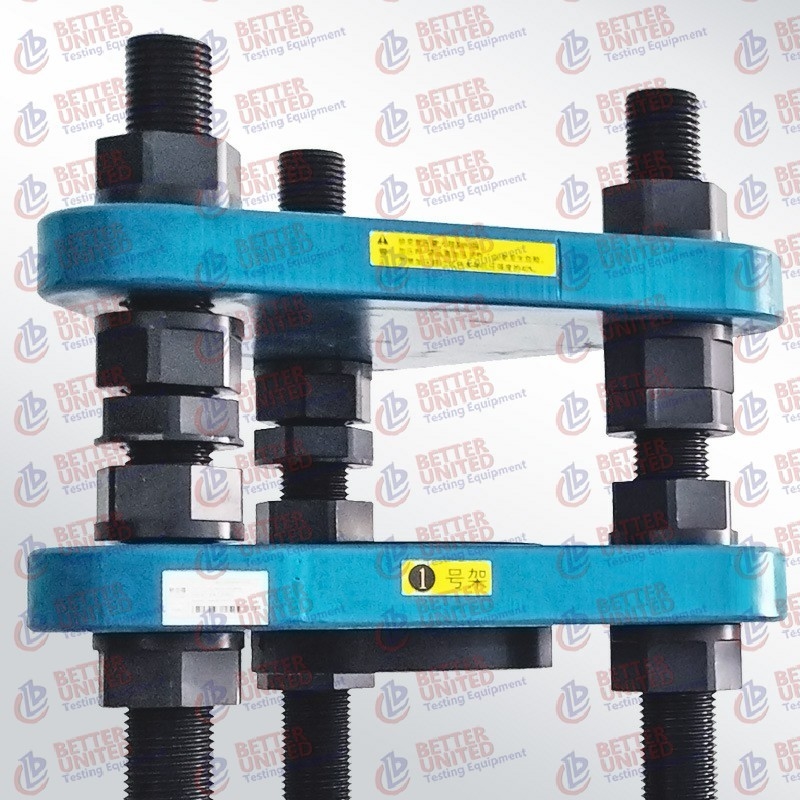

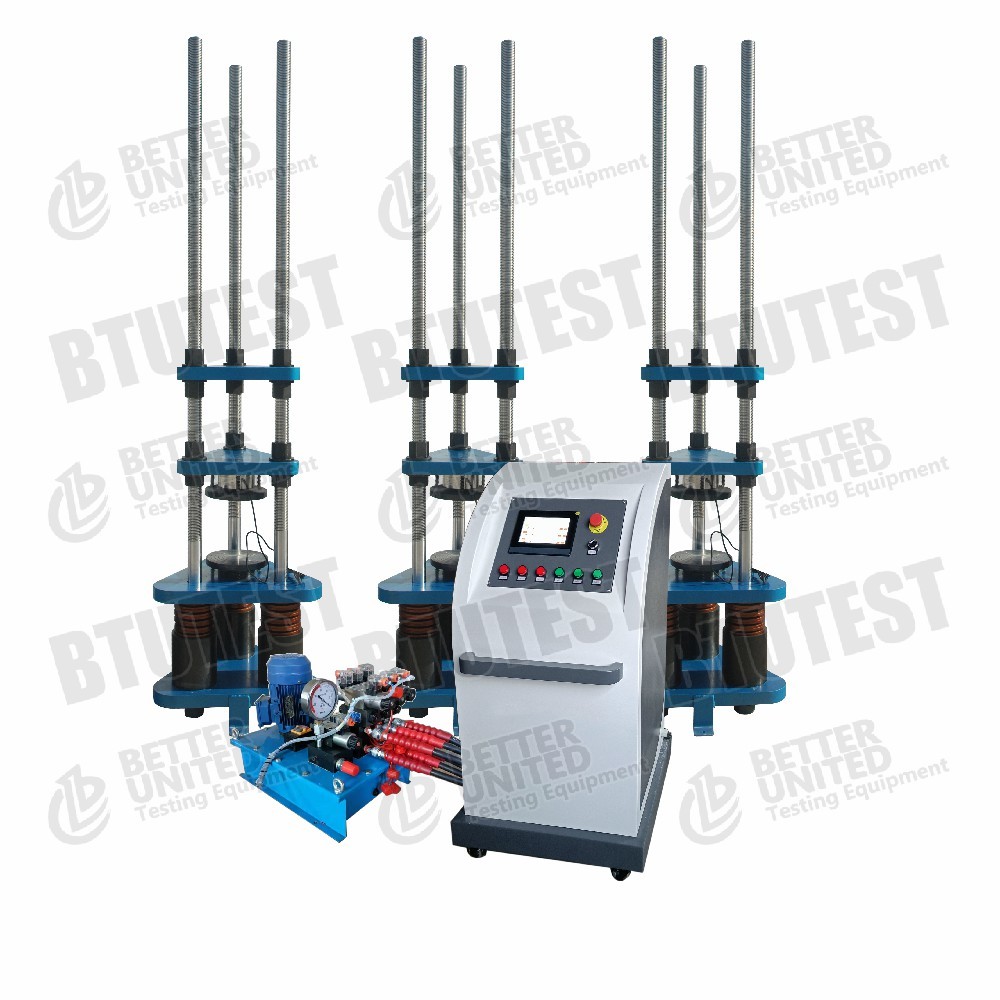

Concrete Creep Testing Machine Concrete Testing Equipment



Description:

Concrete creep testing machineConcrete Creep Testing Machine is designed to determine of concrete cylinder and cuboid parts under constant pressure load over time, ie, the creep deformation of concrete. It is applicable for concrete creep deformation test under single-direction pressure at constant temperature in a humid-free environment.Concrete Testing Equipment



Packing list:
▲One reaction frame suitable for 3 Nos. dia. 150 xheight 300mm cylindrical sample(This frame can be custom-made as per clients' require)
▲One pumping unit electrically operated(user selectable)
▲One hydraulic jack
▲One load gauge
▲One pressure digital display
▲Six pcs displacement sensors(user selectable)
▲Dia. 150 x Height. 300mm Cylinder mould can be ordered seperately





Specification:

Model BTU-500
Maximum testing force 500KN
Measurement range 0-500KN
Relative reading error ±1%
Spring height 300mm
Spring compression stroke 52mm
Maximum distance between upper platenand lower platen(Compression space) 1500mm
Power supply 380V,50Hz
Load machine dimension 300mm×200mm×1150mm
Inside dimension 1000mm×600mm×1000mm
Net weightabout  800kg
Model BTU-1000
Maximum testing force 1000KN
Measurement range 0-1000KN
Relative reading error ±1%
Compression space 1200mm
Specimen dimension Dia.150×Height300mm
Max specimen quantity 3pcs
Spring type  Disc spring
Spring compression stroke 50-52mm
Maximum distance between upper platenand lower platen(Compression space) 2500mm
Power supply 220V,50Hz
Package dimension 750mm×750mm×2800mm
Gross weight 1200kg

Concrete Creep Testing Machine Maximum 500KN / 1000KN 0


About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
