ASTM C805 DIN Concrete Strength Test Hammer Standard Ndt Testing Equipment

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-CTHS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Concrete Testing Equipment Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 80000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Concrete Test Hammer Standard Standard: EN 12504 PART 2 ASTM C805 DIN 1048 BS 1881:202 NF P18-417
Warranty: 1 Year Pointer Length (mm: 20.0±0.2
Pointer Friction (N): 0.65±0.15 Working Length Of Spring (mm): 61.5±0.3
High Light:

DIN Concrete Strength Test Hammer

,

ASTM C805 Ndt Testing Equipment

Product Description

Concrete Test Hammer Standard Concrete Testing Equipment

Standard:
EN 12504 PART 2 ASTM C805 DIN 1048 BS 1881:202 NF P18-417

Features:

  • The imported high-quality Korean SWP piano spring has good anti elasticity and anti fatigue performance;
  • NBR seal dust ring, ensure the movement clean, extend the maintenance cycle;
  • CNC machining center and other machine tools refine the core to ensure accurate and stable rebound value;
  • Soft anti-wear hand rubber sleeve makes the rebound meter more comfortable to operate;
  • Fine grinding spherical zero adjusting screw, springback firing more smooth;
  • The improved pointer design is easy to adjust friction and more stable;
  • The high-precision aluminum alloy flange is not easy to be damaged, and the high-strength hook is not easy to hang empty;
  • The integrated design of the shell, the guide key and support are permanently free from damage and falling off; the button adopts the stretching process, which is not easy to fall off.

Description:
HT-225A applicable to detect strength of high-rise building components, Bridges and concrete member (plate, beam, column, bridge). According to the standard acceptance evaluation of concrete strength.Suitable for finished concrete structures and buildings having strength resistances from 10 to 70 N/sq.mm.Concrete Testing Equipment

Specification:

Pointer length (mm)20.0±0.2
Pointer friction (N)0.65±0.15
Radius of spherical surface at the end of projectile rod (MM)25±1.0
Uncoupling position of projectile hammer Scale mark "100" mark
Spring stiffness (n / M)785.0±30
Working length of spring (mm)61.5±0.3mm
Tensile length of projectile hammer (mm)75±0.3
Take off position of projectile hammerScale "0"
Fixed value of steel anvil80 ± 2 (control the ex factory product between 80-81)

ASTM C805  DIN Concrete Strength Test Hammer Standard Ndt Testing Equipment 0

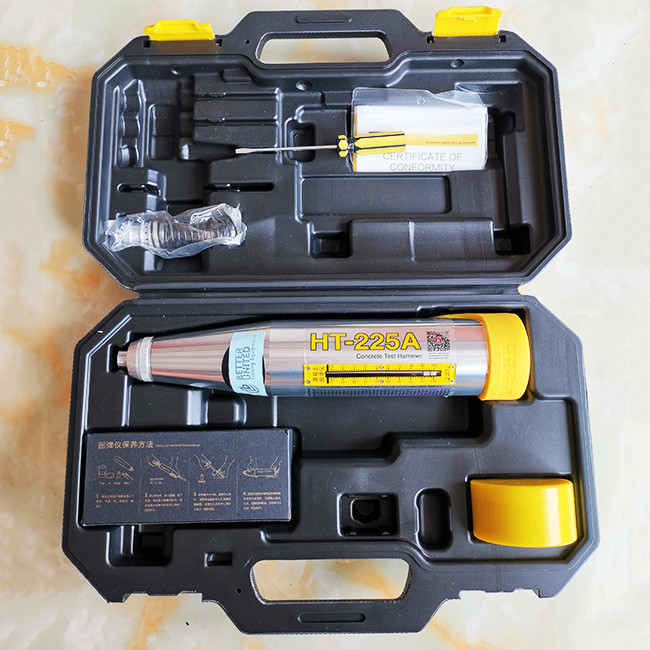

ASTM C805  DIN Concrete Strength Test Hammer Standard Ndt Testing Equipment 1

About Us:
260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.

Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
