Single Column Electromechanical Universal Testing System 200N-5000N Force

Product Description

Electronic Universal Testing Machine With Single Column Universal Testing Equipment

Standards:

EN ISO 6892-1, EN ISO 15630-1, EN ISO 7500-1, EN 10002, ASTM A370, DIN

Description:

• This tester can test and analyze the mechanical properties of metal, non-metal and composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, plastic rubber, ceramic building materials, metal materials, construction engineering and other industries, as well as colleges and universities, scientific research institutions, technical supervision, quality inspection stations and other departments.
• After selecting different attachments according to gb/iso/astm/jis/din and other standards, it can stretch, compress, bend, peel, shear, tear, puncture, bursting, and test the yield strength, tensile (compression, bending) strength, elongation, non proportional strength, elastic modulus and other parameters of the material.
• Load measurement: 0.05%fs high stability, high-precision spoke tension and compression sensor, coupled with a high-performance measurement and amplification system, ensures the high resolution of the test force. Sample deformation measurement: through the large deformation measurement system or electronic extensometer (small deformation measurement), the 24 bit a/d conversion single chip microcomputer acquisition system is adopted, and the deformation measurement of the sample is realized through computer-controlled data processing. Displacement measurement: 2000p/r high-precision photoelectric encoder and precision screw are used to rotate coaxially, and the measurement of displacement (i.e. the relative displacement of upper and lower collets) is realized through digital circuit.
• Single arm structure is adopted, which is composed of column, upper beam, middle beam and workbench. The speed regulation system is installed at the lower part of the workbench. The servo motor with high speed regulation accuracy, wide range and stable performance drives the ball screw pair to rotate through the synchronous toothed belt reduction system, and the ball screw pair drives the middle beam to drive the tensile attachment (or compression, bending attachment) to move up and down, so as to realize the loading and unloading of the sample. The structure has the advantages of high rigidity, high efficiency and stable transmission.It has overload, overcurrent, leakage and other protection functions.

Optional control system

• Based on the computer windows operating system as a platform, it has the characteristics of fast running speed, mild interface, simple operation and so on, which can meet the test and measurement needs of different materials. If there are special requirements, the software can be customized, and the software functions can be expanded according to user requirements. It adopts computer and advanced electronic technology to realize standardized and unitized control, which has the characteristics of stable loading, accurate measurement and high acquisition frequency. Automatically collect and process test data, draw various curves and print test reports.

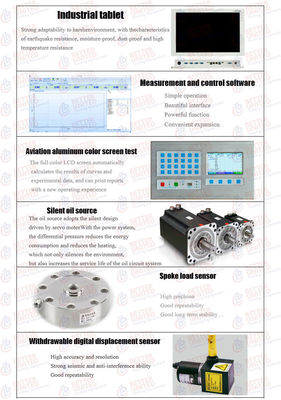

• It adopts well-known brand digital display controller, high-quality servo motor and servo controller, high-precision load sensor and displacement sensor, so as to achieve accurate control, high response frequency and accurate indication. It can also realize the detection of various materials, measure and control with digital technology, the appearance of the whole machine is beautiful, and the test force and displacement are displayed digitally; It has the functions of continuously adjustable test speed, maintaining the peak value of testing force and displacement, automatic shutdown protection for sample fracture, calibration of testing machine, etc; The test force is not divided in the whole process, with wide measurement range and convenient operation. It is equipped with a PC communication interface, which can be connected to a computer for test data collection and test result analysis.

Features:

• Single column electro mechanical floor standing model
• High quality servo motor and servo controller
• High precision load sensor and displacement sensor, class 1 and class 0.5 calibration
• Overload protection limit sensor, non-contact extension limit sensor
• Emergency power cut off button
• Close loop. Control of load, displacement, extension, stress and strain
• Remote control via software
• Software updates and modification installation available via email or remote support
• Diverse and robust configurations for automatic test end options, graph options, PID values, crosshead movement speeds etc
• Different Testing Methods including cyclic, creep, relaxation, keeping etc
• View data and graphs of previously ran tests
• Determine and analyze data points such as yield point, breaking point, modulous etc
• Test report printing options include direct to printer or excel file export
• Test report data can be configured to show only necessary data and to exclude unused data
• Raw data analysis for detailed test data
• Exportable to excel and customizable to show user required dat
• Universal Testing Equipment

Specification:

About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.

Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
