Product Details:
|
|
Place of Origin: | Made in China |
---|---|
Brand Name: | Btutest |
Certification: | SGS, INTERTEK |
Model Number: | BTU-DTM822R |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Environmental Testing Equipment Export standard package |
Delivery Time: | 3 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3000 sets per month |
Detail Information |
|||
Name: | Electronic Total Station DTM100 | Warranty: | 1 Year |
---|---|---|---|
Dimensions: | 174×207×383mm | Weight: | 12 Kg |
Length: | 150mm | Application: | Environmental Testing Equipment |
High Light: | DTM100 Environmental Testing Equipment,Edm Total Station 150mm |
Product Description

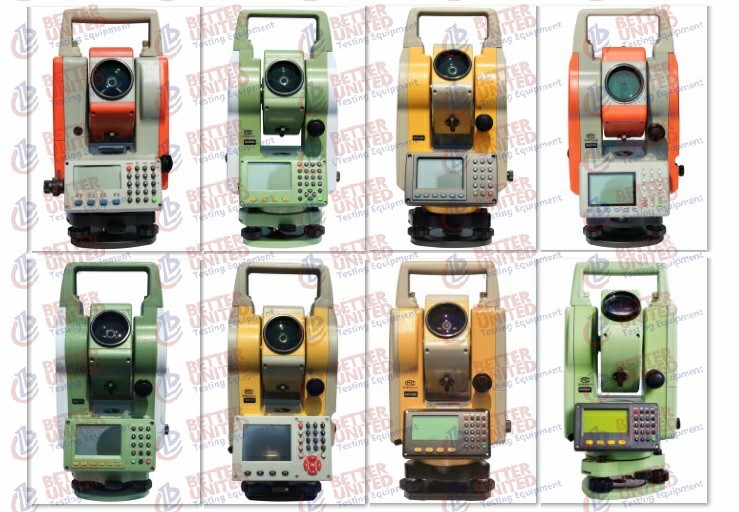

Electronic Total Station DTM100 Environmental Testing Equipment
Description:
Total stations are widely used in below fields, and are well received by worldwide surveyors and users.
Land surveying, Civil engineering, Topographic engineering Tunnel engineering, Water engineering.
Environmental Testing Equipment
Specification:
Telescope | ||
Length | 150mm | |
Magnification | 30X | |
Image | Erect | |
Shortest sighting distance | 1.0m | |
Additive constant | 0 | |
Objective lens aperture | φ48 | |
Resolving power | 3.75〞 | |
Field of view | 1°30'(26m/1000m) | |
Stadia proportion | 100 | |
Angle measurement | ||
Measuring mode | absolute encoder system | |
Minimum reading | 1〞,5〞,10〞 | |
Accuracy | 2〞,5〞,10〞 | |
Compensator | ||
Type | Single axis liquid tilt sensor | |
Range | ±3' | |
Accuracy | 3〞 | |
Distance measurement | ||
Measurement range | Average weather condition, visibility is about 23.5km | |
Single prism | 1000m | 1800m |
Three prism | 1600m | 2600m |
Minimum display | Accurate mode: 1mm | |
Track mode: 10mm | ||
Accuracy | ±(3mm+2ppm•D) | |
Measuring time | ||
Accurate mode | 2〞 | |
Track mode | 0.8〞 | |
Display | ||
Display | Graphic lattice LCD on both sides | |
Horizontal angle display range | 0°~359°59'59〞 | |
Vertical angle display range | 0°~359°59'59〞or 0°±89°59'59〞-999.99%~999.99% | |
Applied measuring module | ||
Recession module | Area measure module | |
Coordinate measuring module | Offset measurement module | |
Laying-out | Missing line measurement module | |
Remote elevation measurement module | Memory≥15,000 dots | |
Measuring mode | ||
Horizontal angle | Left angle, right angle, set mode | |
Vertical angle | Zenith 0°, horizontal 0°, horizontal 0°±90°,slope% | |
Measuring time | Less than 0.5 second | |
Angular unit | degree,gon,mil | |
Others | ||
Level sensitivity | Plate level:20〞/mm,30〞/mm | |
Circular level:8'/2mm | ||
Laser plummet | ||
Data output | Asynchronous serial in RS-232/USB(option) | |
Height | 232mm | |
Weight | 6.2kg | |
Power supply | Rechargeable battery:BDC1800mAh,6v (Ni-MH Battery) | |
Battery working time | Distance measurement:6 hours | |
Angle measurement:100 hours |
About Us:

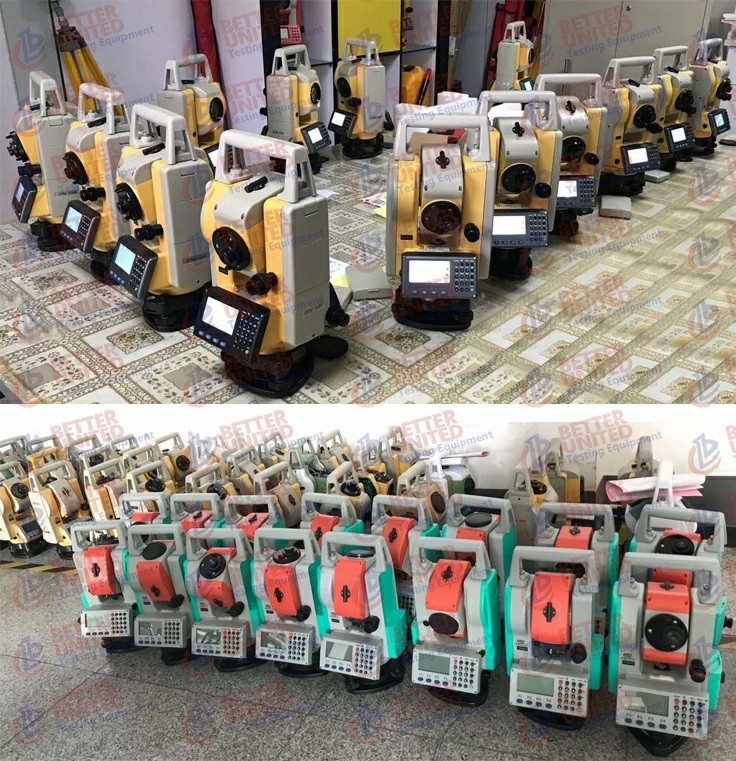

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.Environmental Testing Equipment
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Cement Testing Equipmentt.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.Environmental Testing Equipment
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.
Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
