DE2A Electronic Transit Theodolite Environmental Testing Instruments

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: DE2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Environmental Testing Equipment Export standard package
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: DE2A Electronic Theodolite Warranty: 1 Year
Objective Aperture: 47mm Shortest Viewing Distance: 1m
Stadia Ratio: 100 Application: Environmental Testing Equipment
High Light:

DE2A Electronic Transit Theodolite

,

DE2A environmental testing instruments

Product Description

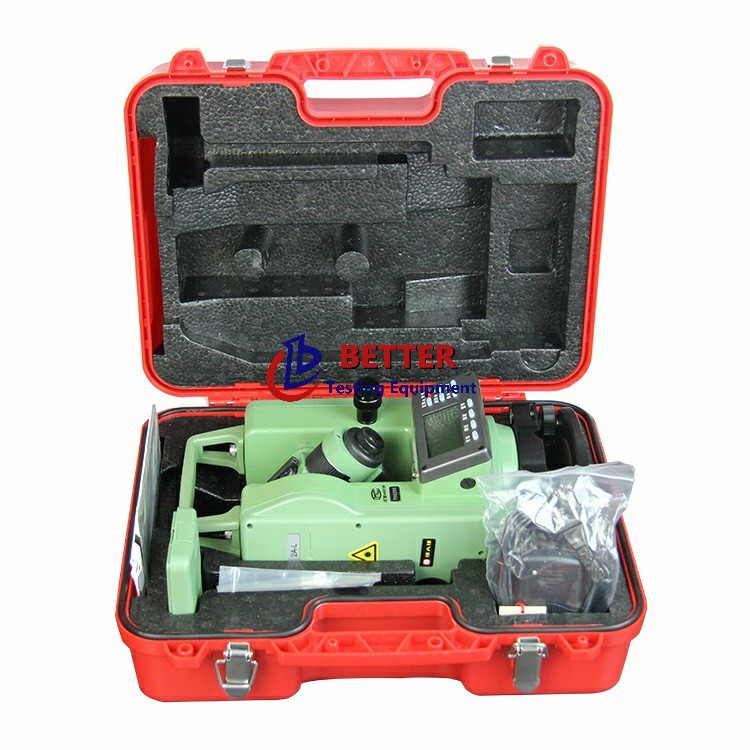

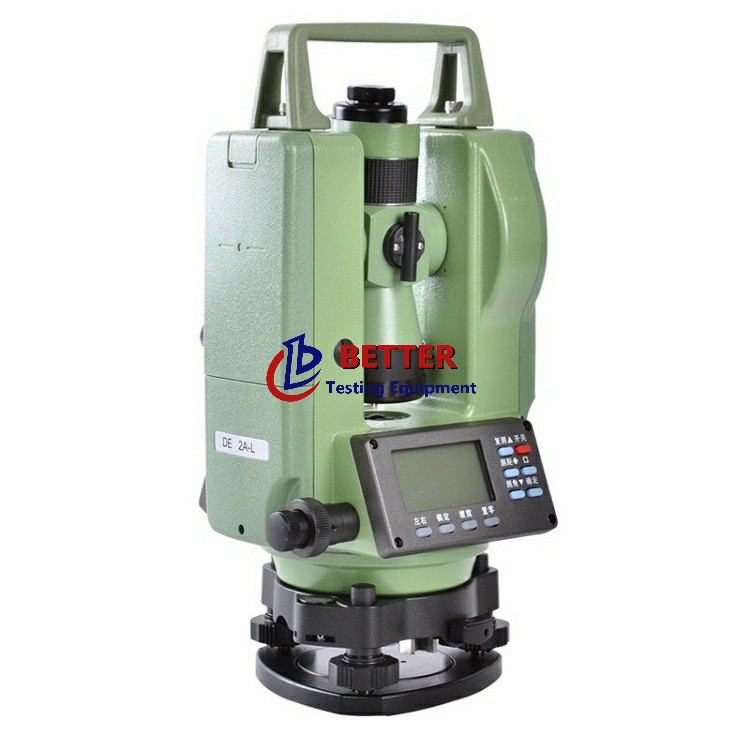

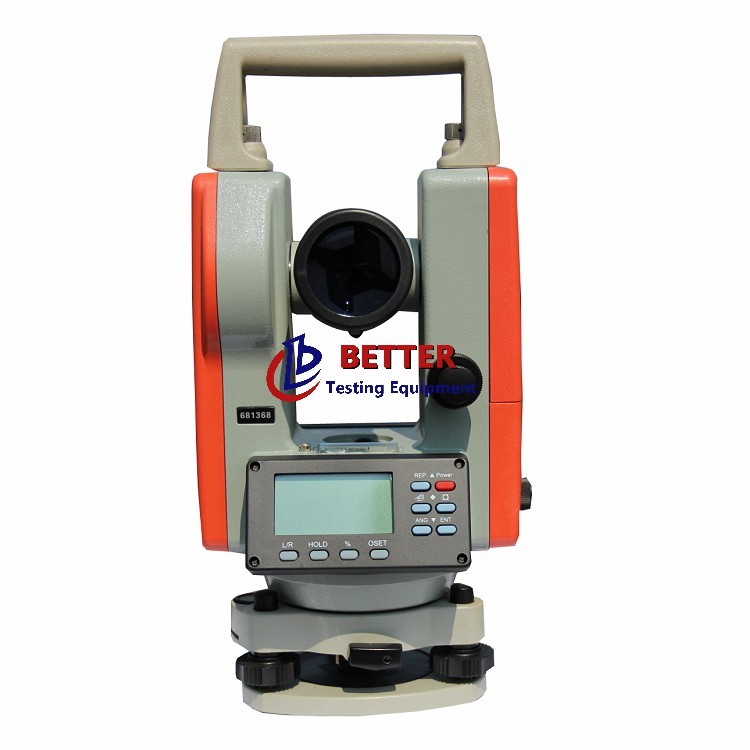

DE2A Electronic Theodolite Environmental Testing Equipment



Description:

  • Absolute coding angle measurement system, angle measurement is digital, intelligent, stable and reliable
  • Double sided LCD panel, clear display and convenient operation
  • High integrated circuit board, high quality IC components, imported CCD sensor to ensure quality
  • Steel shafting, imported lubricating grease, metal shell, long service life
  • Independent tilt sensor to automatically correct tilt error
  • Sealed waterproof telescope
  • Coaxial locking screw and fine adjustment screw for easy measurement
  • International universal function mode, simple and standard operation
  • Environmental Testing Equipment



Specification:

Model and Specification DE2A
Telescope Image Erect
Magnification 30x
Objective aperture 47mm
Field of view 1°30′
Shortest viewing distance 1m
Stadia ratio 100
Resolution 3.75″
Angle measurement Angle measurement mode Absolute angle encoder system
Minimum count 1″/5″/10″/20″
Angle units DEG/MIL/GON
Accuracy 2″/5″/10″
Display

LCD

LCD double sides

compensator Compensation range ±3′
  Resolution 1″
Up laser point Wavelength 635nm
Laser focusingpoint 5mm/100m
Deviation between laser focusing point and telescope collimation axis ≤5″
Valid optical distance 150m(Day)
Down Point type Down Laser plummet
Precision of plate vial 30″/2mm
Precision of circular vial 8′/2mm
Working Temperature -20℃~+50℃
Power Battery Chargeable NiMH battery
Voltage 6.0V
Instrument weight 6.5kg
Volume 180mm×166mm×355mm

DE2A Electronic Transit Theodolite Environmental Testing Instruments 0



About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.Environmental Testing Equipment

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Cement Testing Equipmentt.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.Environmental Testing Equipment

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

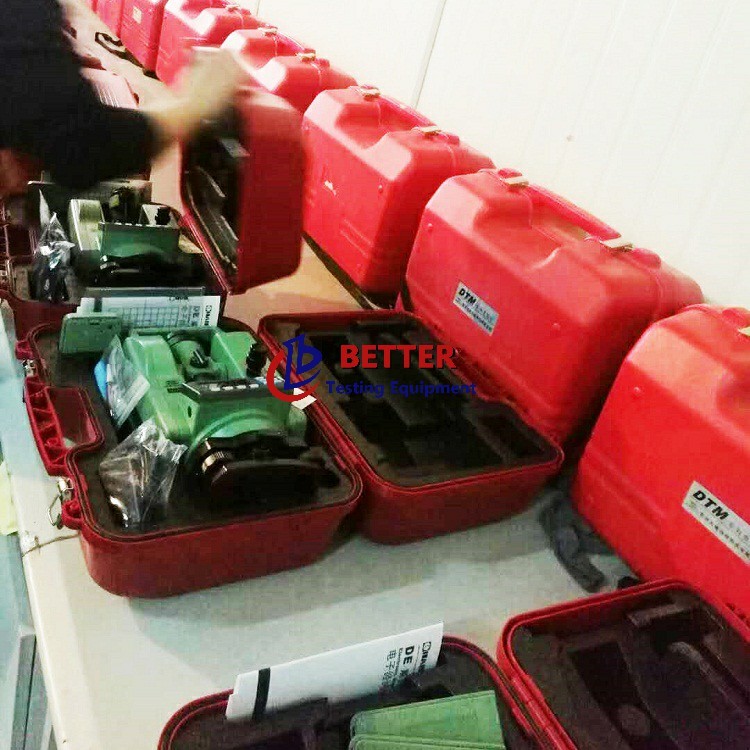

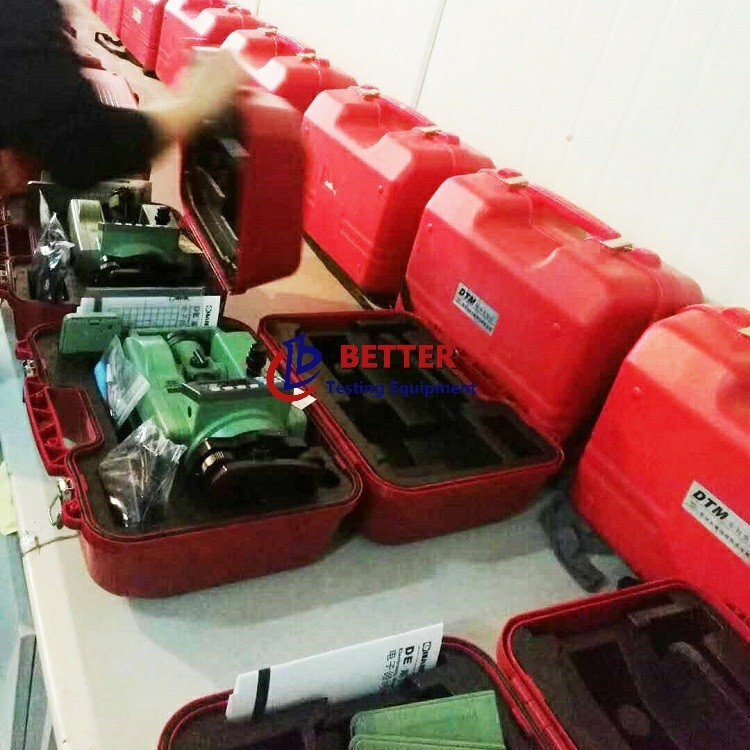

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
