SGS INTERTEK Expansion Index Test Apparatus Cohesive Soil Shrinkage Apparatus

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Soil Testing Machine Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Expansion Index Test Apparatus Cohesive Soil Shrinkage Apparatus Cutting Ring Knife: Φ 861.mm × 20mm
Horizontal Adjustment: 2 Bottom Adjusting Screws Guide Ring: Prevent Expansion
Instrument Weight: 2.5kg Warranty: 1 Year
High Light:

INTERTEK Expansion Index Test Apparatus

,

Cohesive Soil Shrinkage Apparatus

,

SGS Expansion Index Test Apparatus

Product Description

Expansion Index Test Apparatus Cohesive Soil Shrinkage Apparatus Soil Testing Machine



Description:

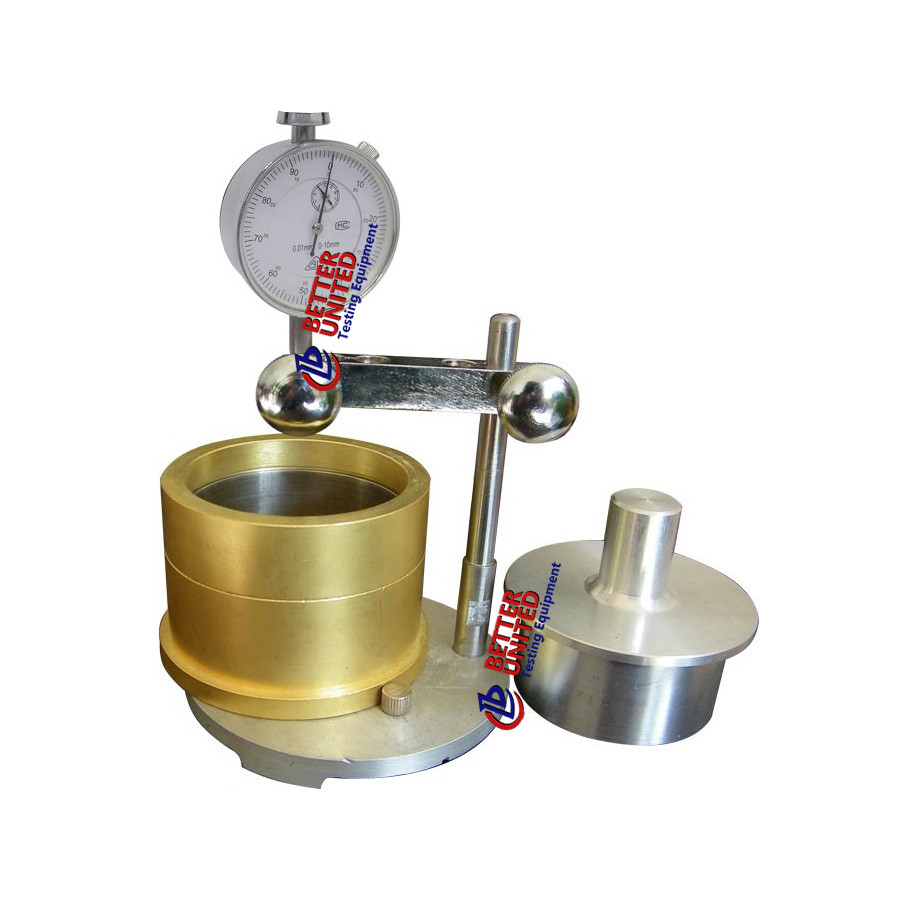

SS-1 soil shrinkage meter is used to measure the shrinkage limit water content, linear shrinkage, volume shrinkage, shrinkage coefficient, etc. of clay during water loss. Comply with the Specification for Soil Test (SL237-026-1999) and the Specification for Highway Soil Test (JTJ051-93, T0121-93).Soil Testing Machine



Main components:

The soil shrinkage meter is composed of the main part and the quasi-soil part.

1. The main part is composed of base plate, watch rod, watch clip, perforated plate, etc.

2. The quasi-soil part is composed of guide ring, ring cutter, locating ring and bulldozer.

3. The dial indicator is not attached when leaving the factory and is prepared by the user.



Main technical conditions:

1. The ratio of y effective working area to pore area of perforated plate is 2:1.

2. The micrometer block is 10mm in diameter and 4mm in thickness.

3. The diameter of soil cutting ring is 61.8 mm and the height is 20 mm (the area of soil sample is 30 square centimeters and the height is 2 mm).

4. Overall dimension of instrument box 110 × one hundred and five × 125 (long × wide × High)

5. Gross weight of soil shrinkage meter: 1Kg



Description:

WZ-2 soil dilatometer conforms to GBJ123-88 soil test and JT051-93 highway soil test specification. This instrument is used to measure the no-load expansion of undisturbed soil and compacted soil samples, and to measure the expansion of cohesive soil in the process of immersion and the water content after expansion and stabilization. It can be used as a reference for evaluating the expansion potential energy of clayey soil, and can meet the needs of both geotechnical tests and highway tests.



Specification:

Main technical parameters of soil dilatometer
Cutting ring knife Φ 861.mm × 20mm
Horizontal adjustment 2 bottom adjusting screws
Guide ring prevent expansion
Dial gauge 0-10mm (user optional)
Instrument weight 2.5kg

SGS INTERTEK Expansion Index Test Apparatus Cohesive Soil Shrinkage Apparatus 0


About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Cement Testing Equipmentt.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
