Hebei Better United Import And Export Co., Ltd.

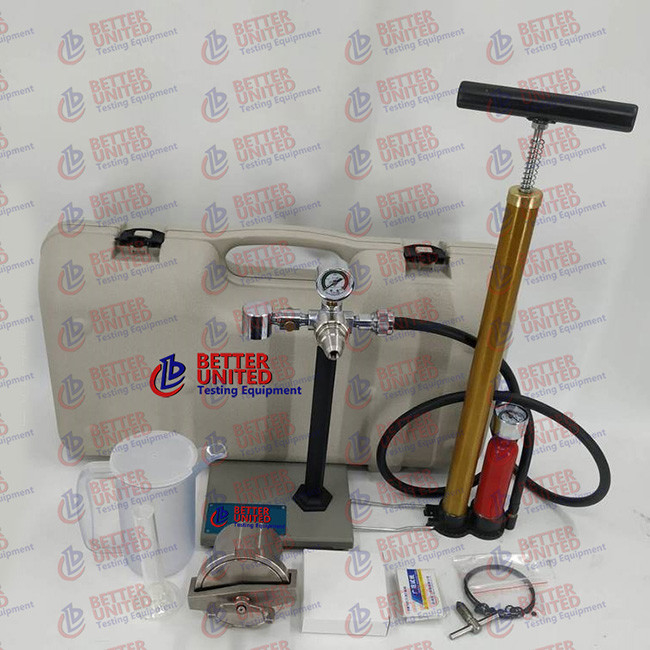

Various Models Middle Pressure Filter Press Drilling Fluids Testing Equipment

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: ZNS-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Drilling Fluids Testing Equipment Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Middle Pressure Filter Press Filtration Area: 45.6cm2
Working Pressure: 0.69mpa Limit Pressure Of Drilling Fluid Cup: 1MPa
Injection Volume Of Drilling Fluid Cup: 240ml Application: Drilling Fluids Testing Equipment

Product Description

Various Models Middle Pressure Filter Press Drilling Fluids Testing Equipment



Description:

Under the action of pressure difference, the drilling fluid will have filtration, that is, the free water in the drilling fluid will permeate into the pores or gaps of the borehole wall rock. The medium pressure fluid loss meter, also known as mud water loss meter, is used to simulate the fluid loss and filter cake formation characteristics of drilling fluid under static conditions in the well. Zns-2a medium pressure fluid loss instrument adopts a set of stainless steel drilling fluid cup, zns-2 medium pressure fluid loss instrument adopts aluminum drilling fluid cup, with rated working pressure of 0.69mpa, effective filtration area of 45.6cm2 and capacity of 240ml. It is equipped with an air source device of an air cylinder, or a low-pressure manifold (optional) and a nitrogen cylinder can be used in the laboratory.Various Models Middle Pressure Filter Press Drilling Fluids Testing Equipment



Specification:

Filtration area 45.6cm²
Working pressure 0.69mpa
Limit pressure of drilling fluid cup 1MPa
Injection volume of drilling fluid cup 240ml
Drilling Fluids Testing Equipment

Various Models Middle Pressure Filter Press Drilling Fluids Testing Equipment 0



About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
