Digital LCD Display Drilling Fluids Testing Equipment Electrical Stability Tester

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: DWY-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Drilling Fluids Testing Equipment Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Electrical Stability Tester Drilling Fluids Testing Equipment Voltage Rise Rate: 150 ± 10v/ S
Voltage Display: Digital LCD Output Frequency: 340 ± 2Hz
Demulsification Current: 61 μ A Application: Drilling Fluids Testing Equipment
High Light:

LCD Display Drilling Fluids Testing Equipment

,

LCD Display Electrical Stability Tester

Product Description

Electrical Stability Tester Drilling Fluids Testing Equipment



Description:

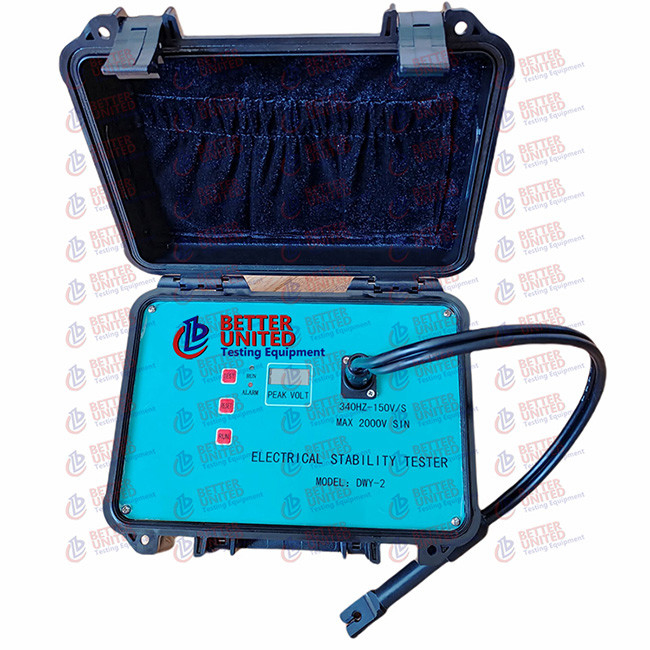

Electric stability tester (DWY-2) is a sine wave instrument, which is accurate, simple and portable. It is used in routine field and laboratory to measure the relative electric strength of drilling fluid with continuous oil phase. DWY-2 tester is composed of testing instrument and probe. It uses four common 9V alkaline batteries to supply power. The dielectric breakdown voltage is the key to the conductivity of drilling fluid. The DC power supply of the battery provides an AC voltage to the electrode at low frequency Drilling Fluids Testing Equipment.



Specification:

  Drilling Fluids Testing Equipment
Operating temperature range: 0-50 ℃ (32-122 ℉)
Maximum test temperature of probe: 120 ± 5 ℉ (49 ± 3 ℃)
Storage temperature range: -20--70 ℃ (-4--158 ℉) (without battery)
Accuracy: ± 2% of expected value
Automatic power off time: 1 minute
Output frequency: 340 ± 2Hz
Output waveform: sine wave
Output voltage range: 0-2025v ± 25V (effective value 1432v)
Demulsification current: 61 μ a
Voltage display: Digital LCD
Voltage rise rate: 150 ± 10v/ s

Digital LCD Display  Drilling Fluids Testing Equipment Electrical Stability Tester 0
