Small and Big tamp food Vibrating Compaction Hammer Soil Testing Equipment

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-VCH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box Soil Testing Equipment
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Small And Big Tamp Food Vibrating Compaction Hammer Soil Testing Equipment Standard: EN 12697-32, 12697-9, 12697-10, 13286-4; BS 1377-4
Power: 1200W,230 V,50-60 Hz,1 Ph Full Load Impact Rate: 2800 Bpm.
Weight Approx: 7.4 Kg Application: Soil Testing Equipment

Product Description

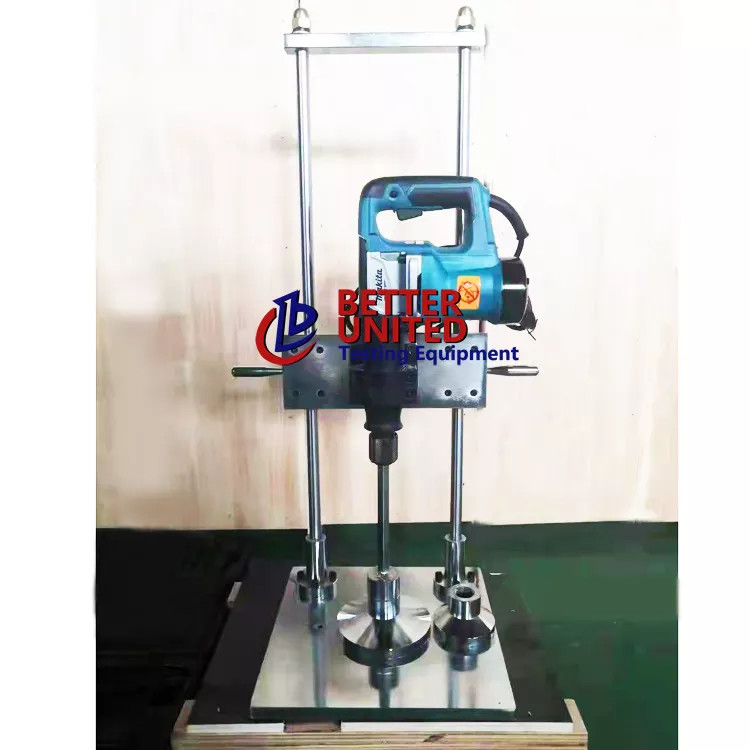

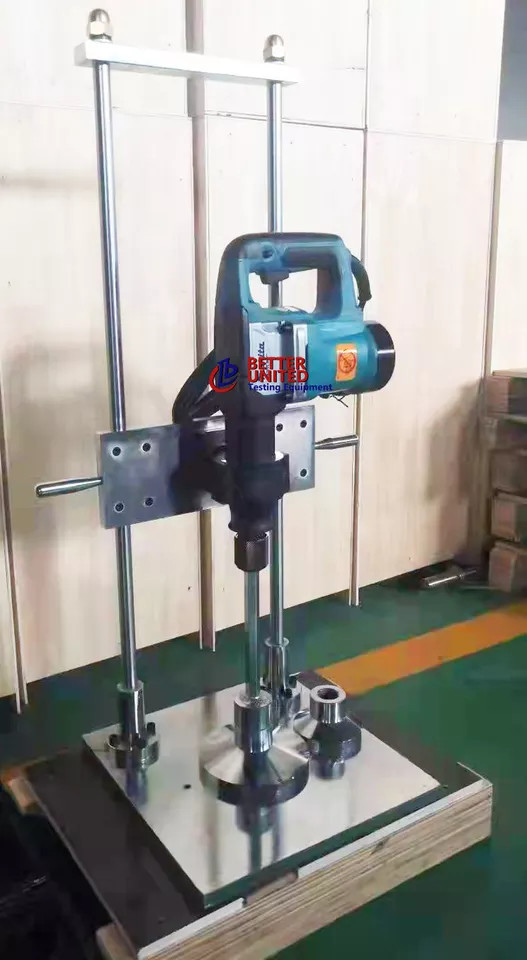

Small and Big tamp food Vibrating Compaction Hammer Soil Testing Equipment



Standards:

EN 12697-32, 12697-9, 12697-10, 13286-4; BS 1377-4



Description:

Provides the compaction of soil samples in the determination of dry density moisture content relation, unconfined compressive strength of stabilized soils and CBR tests. It is also used for the compaction of asphalt in the percentage refusal density and for compacting concrete cube or beam samples.Soil Testing Equipment



Specification:

Power 1200W,230 V,50-60 Hz,1 ph
Full load impact rate 2800 bpm.
Small tamping foot, 102 mm dia., head
Supporting frame for vibrating hammer
Large tamping foot, 146 mm dia., head
Shank, 250mm long
Overall dimensions (wxdxh) 130x530x380 mm
Weight approx. 60 kg
Soil Testing Equipment

Small and Big tamp food Vibrating Compaction Hammer Soil Testing Equipment 0

About Us:

260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.

Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Cement Testing Equipmentt.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.

Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.

Q6: what about the packing of equipment?

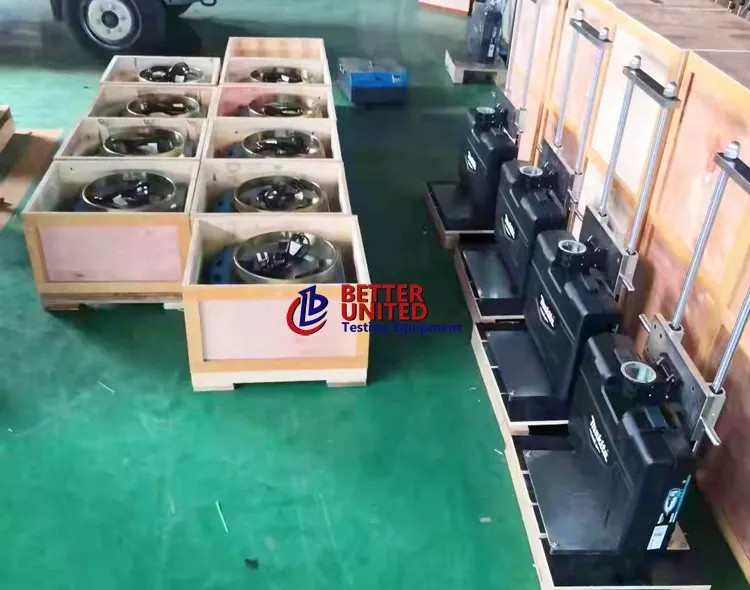

A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
