Multi Function Soil Testing Machine 1500W CBR Marshall Stability Test Apparatus

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-CBRMD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Soil Testing Equipment Standard export wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Multi Function CBR-Marshall Test Machine Digital Measurement Soil Testing Equipment Standard: ASTM/EN/AASHTO/BS/NF
Power Supply: 220v Pressure: 50kn
Loading Rate: 1mm/min-50.8mm/min (freely Set) Man Machine Interface: 7-inch Touch Color Screen
Power Consumption Of The Whole Machine: 1500W Application: Soil Testing Equipment
High Light:

Soil Testing Machine 1500W

,

CBR Marshall Stability Test Apparatus

Product Description

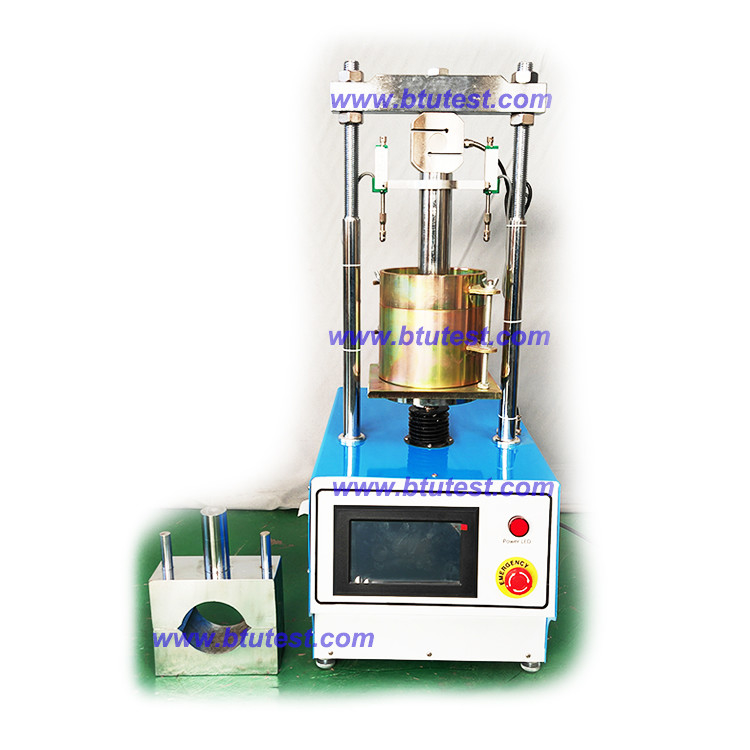

Multi Function CBR-Marshall Test Machine Digital Measurement Soil Testing Equipment



Standards:

BS 1377, 1924; EN 13286-47; ASTM D1883; AASHTO T193; NF P94-078



Description:

  • This machine is designed and manufactured by combining the bearing ratio (CBR) test with Marshall stability test. According to the test requirements, selecting different specimen fixtures can complete the bearing ratio (CBR) test and Marshall stability test. It can also be used for other tests that meet the requirements.
  • Comprises of a robust and compact two column frame with adjustable upper cross beam. The frame has 50 kN capacity.
  • Digital and computerized, The loading rate can be freely set from 1mm/min to 50.8mm/min.

Features:

  • The loading rate can be set freely.
  • 7-inch touch color screen.
  • The product design structure is reasonable.
  • Beautiful appearance.
  • The test operation is simple.
  • The results are accurate and reliable.

Specification:

Rated pressure 50kN, measurement error: ± 0.05% (F.S)
Test displacement (0 ~ 25) mm, measurement error: ± 0.5% (F.S)
Loading rate 1mm/min-50mm/min (freely set)
Man machine interface 7-inch touch color screen
Working power supply AC (220 ± 10%) V 50Hz;
Power consumption of the whole machine 1500W
Distance between two columns 220mm
Overall dimension 360*470*900mm
Weight 120kg

Multi Function Soil Testing Machine 1500W CBR Marshall Stability Test Apparatus 0



About Us:
260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments
