Casagrande Method Liquid Limit Device Disc Type Liquid Limit Device For Soil Test Equipment

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-LLD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box Soil Test Equipment
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: Casagrande Method Liquid Limit Device Disc Type Liquid Limit Device For Soil Test Equipment Power Supply: 220v
Standard: ASTM/BS Warranty: 1 Year
Application: Soil Test Equipment Falling Frequency: 120 Beats/min

Product Description

Casagrande Method Liquid Limit Device Disc Type Liquid Limit Device For Soil Test Equipment



Standards:

ASTM D4318 ; BS1377:2



Description:

  • The liquid limit device is used to determine the moisture content at which clay soils pass from a plastic to a liquid state.

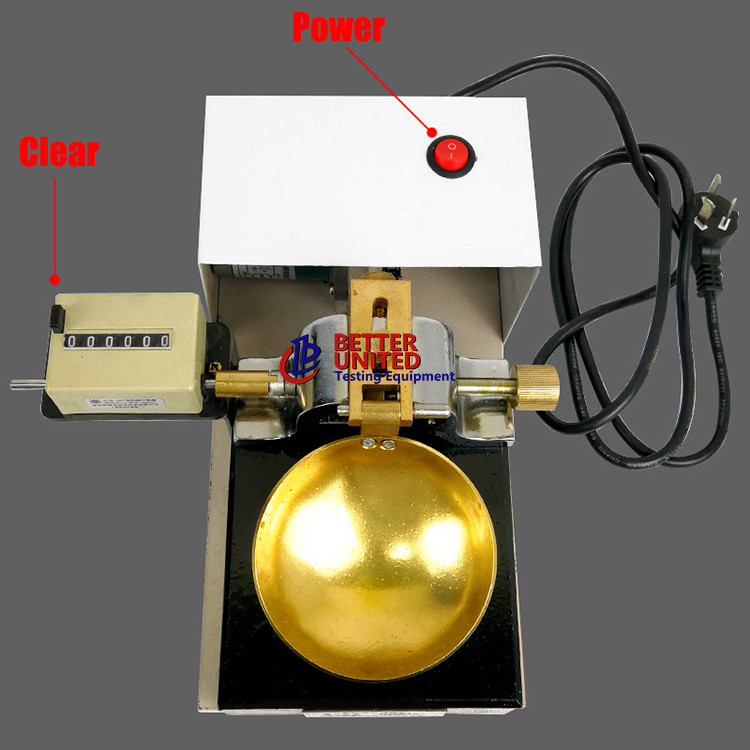

  • The Devices consist of an adjustable crank and cam mechanism, a blow counter and a removable brass cup fitted on the base.
  • Different models with the same shape but with different base and cup weights are available according to the required specifications.
  • This model is motor operated at 120 drops/min speed in order to ensure better uniformity and accuracy. We can supply two versions:Manual and Motorized versions .
  • The grooving tools which differ according to test standard should be ordered separately.
  • Soil Test Equipment

Specification:

Model Manual Motorized
Dimesions 260x300x290 mm 280x330x320 mm
Weight 5 kg 6 kg

Casagrande Method  Liquid Limit Device Disc Type Liquid Limit Device For Soil Test Equipment 0



About Us:
260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments
