ASTM AASHTO Direct Shear Test Machine

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU-DSTMAD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden box Soil Testing Equipment
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: AUTO Direct Residual Shear Test Machine Digital Standard: ASTM/AASHTO/BS/CEN-ISO
Power Supply: 220v Sample Area: 30cm2, Height 20mm
Maximum Horizontal Load: 1.2kn Application: Soil Testing Equipment
High Light:

AASHTO Direct Shear Test Machine

,

ASTM Direct Shear Test Machine

Product Description

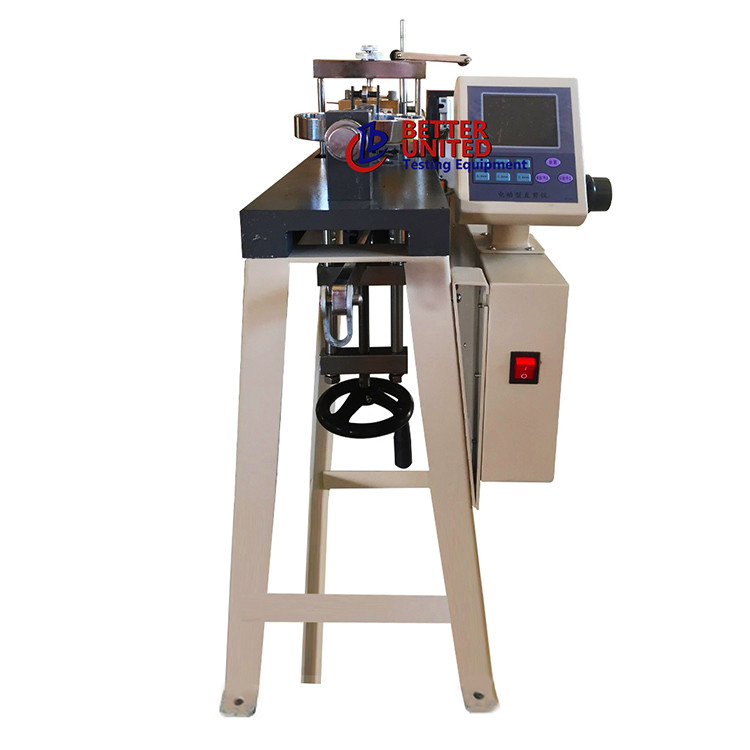

AUTO Direct Residual Shear Test Machine Digital Soil Testing Equipment



Standards:

ASTM D3080; BS 1377:7; AASHTO T236, TS 1900-2, CEN-ISO-TS 17892-10



Description:

  • The test covers the determination of consolidated drained shear strength of a soil material by direct shear.Direct - Residual Shear Test Machine is motorized and floor mounted.
  • Generally, four specimens are applied with shear force under different vertical pressures to obtain the shear stress at the time of failure, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law.Soil Testing Equipment

Features:

  • High resolution color display
  • Intelligent microcomputer control realizes the automation of working process
  • Convenient operation and high accuracy
  • Stable speed and reliable performance
  • The instrument adopts high-performance servo motor as the driving source, which greatly reduces the vibration of the instrument
  • The electric shear rate is optional, and the rate can be changed quickly,
  • Beautiful appearance, easy to use, durable.
  • Soil Testing Equipment

Specification:

Sample area 30cm2, height 20mm
Leverage ratio 1:20
Maximum horizontal load 1.2kn
Vertical grading loading 50kPa, 100KPA, 200KPa, 300kPa, 400kPa
Overall dimension 830x530x1260mm

ASTM AASHTO Direct Shear Test Machine 0



About Us:
260 workers, 25000 ㎡ non-dust workshop, 16 years experience, SGS & INTERTEK certificated, one hour reach Tianjin port, this is how we keep good quality and competitive prices for global valued customers.
Our main products cover Universal testing machine, Compression testing machine, Soil,Concrete,Cement Mortar,Aggregates Rocks, Asphalt Bitumen, NDT,Pavement ,Paint,Ceramics,Drilling Fluids, Geotextiles, Textiles, Environmental,General Equipment,Universal Testing Equipment.BTUTEST is exporting its products to more than 60 countries by offering its services through its authorized distributors and representatives.
Our main customers are private and research testing laboratories, road and general contractors, concrete and cement manufacturers, asphalt manufacturers, government authorities, ministries, engineers, consultants and re-seller. We also cooperate with accredited research centers and the most important universities in the world.we can supply more top quality product and service for more customer’s.



Our Advantage:
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services.
Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on test instruments field. warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q4: After an order is placed, when to deliver?
A: Generally about 10 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.
Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each instruments
