ASTM AASHTO Concrete Flexural Strength Testing Machine

Product Details:
Place of Origin: Made in China
Brand Name: Btutest
Certification: SGS, INTERTEK
Model Number: BTU
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Concrete Testing Equipment Standard export wooden box
Delivery Time: 15 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
  • Detail Information
  • Product Description

Detail Information

Name: General Purpose Flexural Testing Machine Standard: EN, BS, ASTM, AASHTO
Power Supply: 220v ,AC 3 Phase 380V Compression Space(mm): 210\200
Piston Stroke(mm): 80\150 Warranty: 1 Year
High Light:

AASHTO Concrete Flexural Strength Testing Machine

,

ASTM Concrete Flexural Strength Testing Machine

Product Description

General Purpose Flexural Testing Machine Concrete Testing Equipment

Standards:
EN, BS, ASTM, AASHTO

Description:

  • Automatic Flexural Testing Machine HYE-1000D is a high-precision material test equipment that adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can realize closed-loop control and automatic detection. It is composed of test host, oil source (hydraulic power source), measurement and control system, and test instruments. The maximum test force is 1000KN, and the accuracy grade of the test machine is better than grade 1.

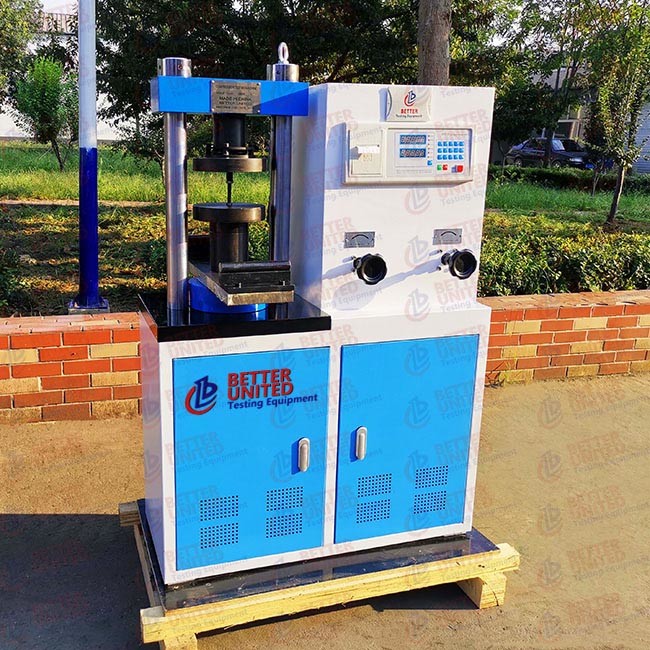

  • Semi-Automatic Flexural Testing Machine DYE-300 is driven by hydraulic power source, and adopts intelligent measurement and control instrument to collect and process test data. It is composed of test host, oil source (hydraulic power source), measurement and control system and test instruments. The maximum test force is 300KN, and the accuracy grade of the test machine is better than grade 1.



  • The test function is to set the loading rate according to the corresponding national standards and meet the standard loading rate control index to carry out the compression test of cement, concrete and other materials under the rated test force. It has the function of dynamic display and timely control of load, time and test curve and the function of maintaining the maximum test force.

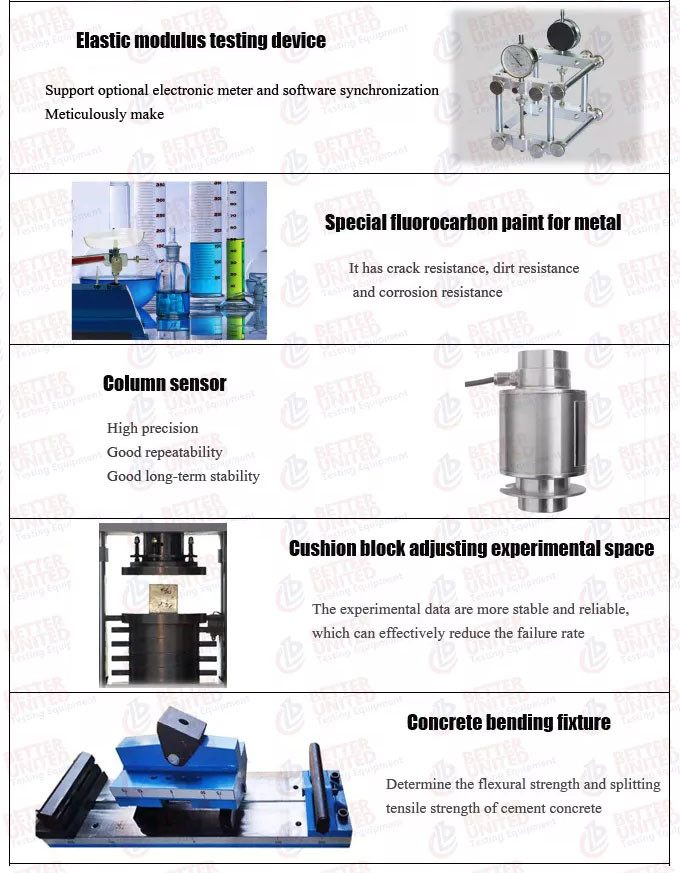

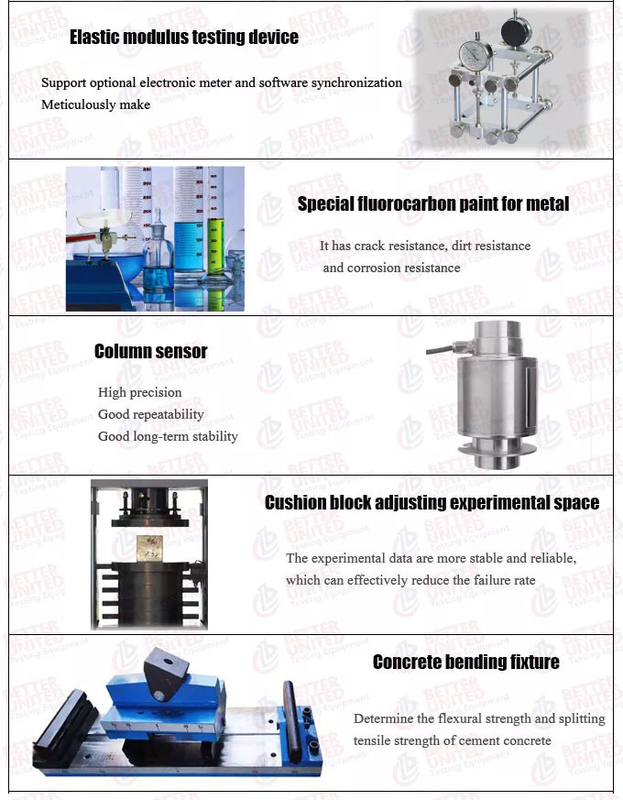

  • The testing machine is a main engine oil source split structure; It is applicable to the compression test of cement and concrete. Equipped with appropriate fixtures and measuring devices, it can meet the splitting tensile test and static elastic modulus test of concrete.
  • Concrete Testing Equipment


 HYE-1000D Features:

  • Simple and convenient operation
  • Stable and reliable, stable Afterburner, Pace Rate control between 1 kN to 25 kN
  • Load Accuracy Class 1
  • Tests automatically with closed loop control

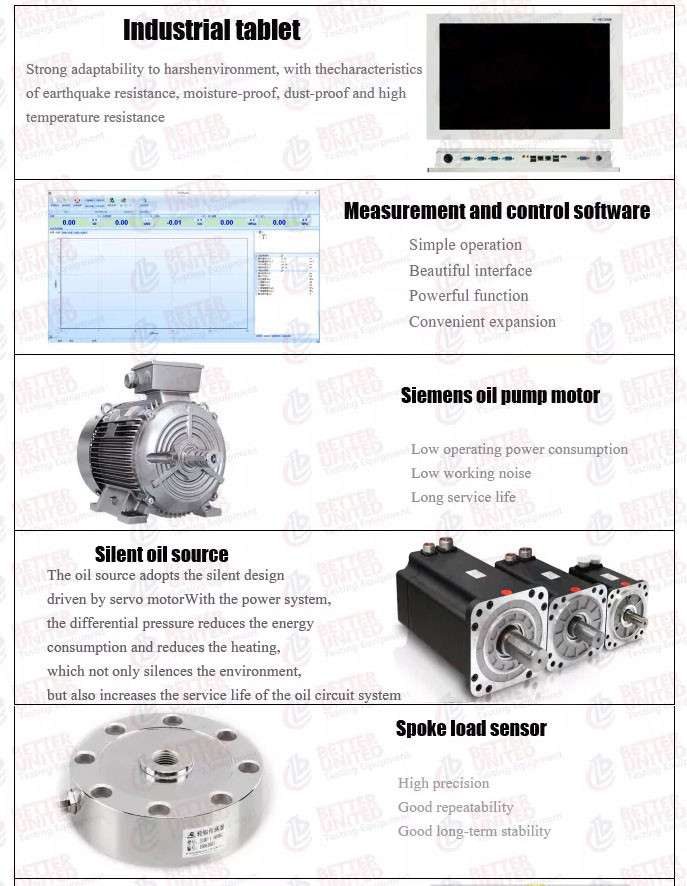

  • The tests can be performed by controlling the machine either on control unit or on a computer with using Software
  • Load measurment with a pressure transducer
  • Mute servo motor
  • High precision spoke sensor
  • Hydraulic pump with dual stage for rapid approach
  • Four Columns frame with a single acting piston
  • Piston return at the end of test automatically
  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable front and rear safety doors
  • Software controlled maximum load value



Specification:

Model DYE-300 HYE-1000D
Maximum test force 300KN 6001000KN
Accuracy class Level 1
Compression space(mm) 210 200
Host structure Two column frame type Four column frame type
Piston stroke(mm) 80 150
size of upper plates(mm) Ф170 Ф250
Size of lower platen(mm)

ASTM AASHTO Concrete Flexural Strength Testing Machine 0

ASTM AASHTO Concrete Flexural Strength Testing Machine 1
